At a node where we want a + 15 dBmV input on the return with a 27 dB multi tap, they are no enough output at 50 dBmV to reach the + 15 dBmV input.
********
Back with Explorer 8, was able to insert the JPG.
Re: docsis 3.0
Member #: 3359
Registered: 1996-2001
Posted:
1285
Name:
Andy Lamarre
Name:
Andy Lamarre
Company:
Catv Expert
Occupation:
Dir.
Location:
Montreal, Quebec, Canada
Personal:
Ancient
Experience:
~66 years
I am now using Explorer 9 BETA. And I cannot upload picture, I will try to explain my discussion.

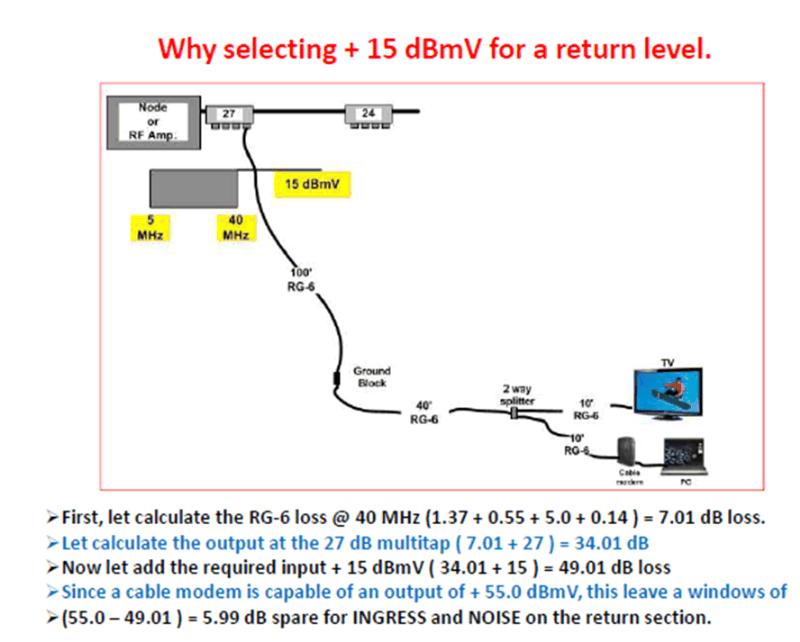

At a node where we want a + 15 dBmV input on the return with a 27 dB multi tap, they are no enough output at 50 dBmV to reach the + 15 dBmV input.
********
Back with Explorer 8, was able to insert the JPG.
At a node where we want a + 15 dBmV input on the return with a 27 dB multi tap, they are no enough output at 50 dBmV to reach the + 15 dBmV input.
********
Back with Explorer 8, was able to insert the JPG.
There is 1 reply to this message
